How to Reduce Particle Friction in Pharmaceutical Tablets?

Beyond Magnesium Stearate: Multidimensional Optimization Strategies

    Reducing inter-particle friction is essential for improving powder flowability and tablet quality. In addition to traditional lubricants like magnesium stearate, manufacturers can enhance formulation performance through particle design, excipient synergy, process optimization, and equipment upgrades. Here’s a detailed guide:

I. Controlling Physical Properties of Tablets

1. Optimize Particle Size Distribution

Mechanism: Uniform particle size reduces void-filling by fines, minimizing wedge-locking effects and friction.

    Method: Use vibratory sieving to narrow the size range (e.g., 80–120 mesh), removing particles <100 mesh (<5%) or >60 mesh (<10%).

    Example: Reducing D50 from 150μm to 200μm and narrowing D90–D10 from 250μm to 150μm decreased friction by 20–30%.

2. Improve Particle Shape and Surface Smoothness

Mechanism: Spherical particles have fewer contact points; smoother surfaces reduce sliding resistance.

Method:

    Wet granulation: Increase binder (e.g., HPMC from 2% to 5%) for more spherical agglomerates.

    Roller compaction: Optimize roll speed (10–15 rpm) and feed rate (5–8 kg/h) to minimize fragmentation.

    Coating: Apply film-coating (e.g., Opadry®) to reduce Ra from 1.2μm to 0.6μm.

Data: Changing from needle-shaped (aspect ratio 3:1) to elliptical (1.5:1) particles reduced the angle of repose by 5°–8°.

3. Control Moisture Content

Mechanism: Moderate moisture reduces static charge; excess increases stickiness and friction.

Method: Use fluid bed drying (50–60°C for 20–30 min) to keep moisture below critical RH (typically 4–6%).

For hygroscopic materials, add anti-caking agents like 0.5–1% colloidal silica.

Caution: Moisture <1% can cause static buildup—spray 0.5–1% ethanol to neutralize charge.

II. Excipient-Based Synergistic Approaches

1. Add Flow Enhancers

Mechanism: Ultrafine excipients (<10μm) fill voids and reduce contact points with a ball-bearing effect.

2. Use Water-Soluble Lubricants

Mechanism: Improve lubrication during compaction and dissolve post-disintegration, aiding drug release.

Options:

• SLS (Sodium Lauryl Sulfate): 0.1–0.5%, lowers surface energy.

• PEG 4000/6000: 1–3%, forms a lubricating film on heating.

Example: Replacing 50% magnesium stearate with SLS reduced friction from 0.25 to 0.20 and increased dissolution from 75% to 85% in 30 minutes.

3. Add Surfactants

Mechanism: Reduce hydrogen bond friction between polar groups by lowering surface tension.

Example: For TCM extracts and polysaccharide-rich granules, add 0.2–0.5% Tween-80 or Poloxamer 188 via wet granulation.

III. Process and Equipment Optimization

1. Granulation Technique Selection

Wet Granulation: Produces denser, smoother granules.

• Case: HPC 3% increased granule hardness from 20N to 50N and reduced friction by 15%.

Spray Drying: Produces spherical, uniform granules.

• Result: 30–40% less friction than traditional granules (e.g., D50 = 150μm).

2. Mixing Optimization

Method:

• Use 3D mixers at 6–8 rpm for 15–20 min.

• Avoid high-shear mixers that cause fragmentation.

• Apply geometric dilution for density-variant APIs and add flow agents (e.g., silica) last.

3. Equipment Upgrades

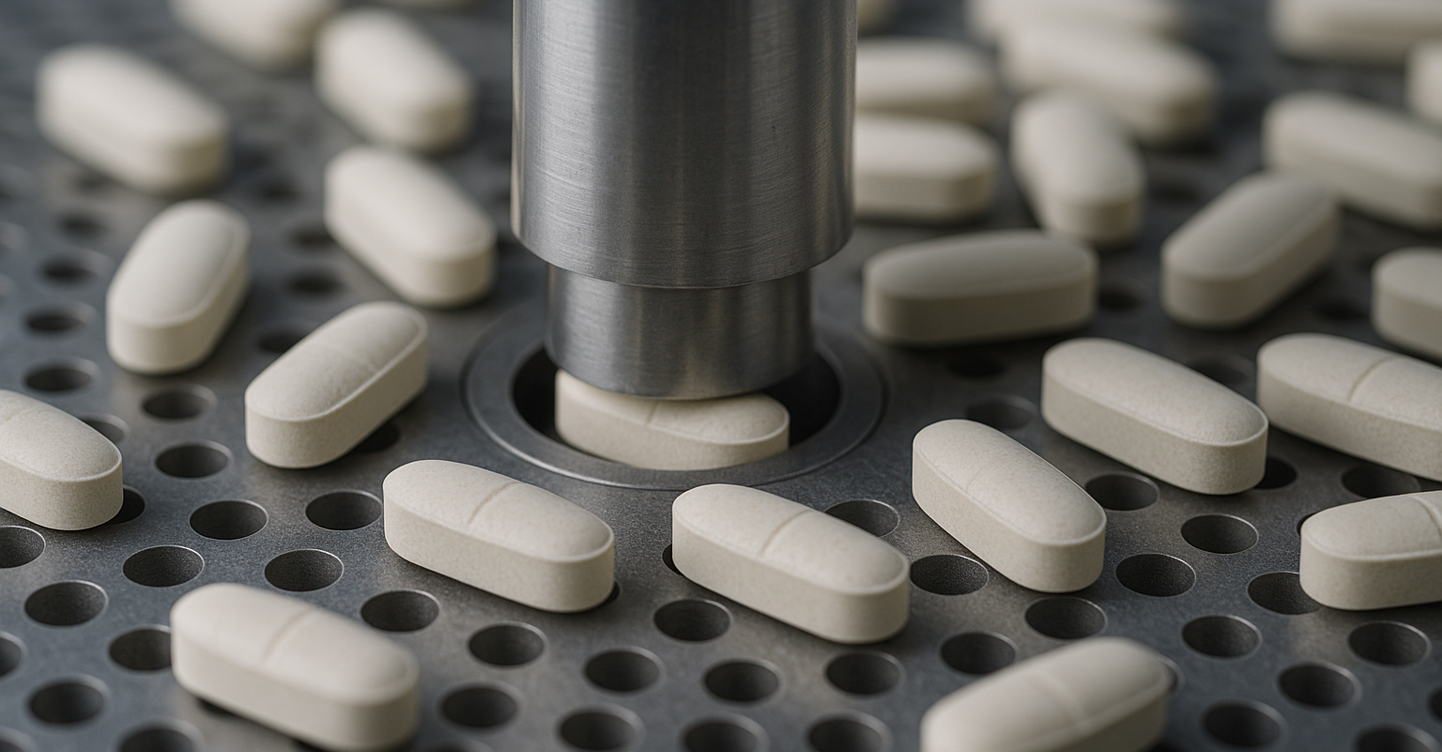

Punch Surface Treatment: DLC coating (Ra ≤ 0.2μm) reduces friction from 0.3 to 0.15.

Use of Ceramic Punches (e.g., Zirconia): Hardness ≥ HV1200, 5× more wear-resistant than stainless steel.

Hopper Aids:

    Vibrators: 50–60 Hz, amplitude 0.5–1 mm to break bridging.

    Planetary stirrers: 5–10 rpm to eliminate dead zones (esp. for powders with angle of repose > 40°).

IV. Other Innovative Techniques

1. Static Charge Control

Method:

• Install ionizing bars to neutralize charge (reduce from +5 nC/g to ±1 nC/g).

• Maintain RH at 45–55% to suppress static (10% RH increase doubles charge decay speed).

2. Supercritical Fluid Surface Treatment

Mechanism: Supercritical CO₂ delivers lubricants like stearic acid into micro-pores, forming nano-lubricant layers.

Advantage: Reduces lubricant usage by over 50%, avoids uneven external coating, and lowers dry friction.

Conclusion & Strategy

Reducing inter-particle friction should be tailored based on material properties and manufacturing goals:
