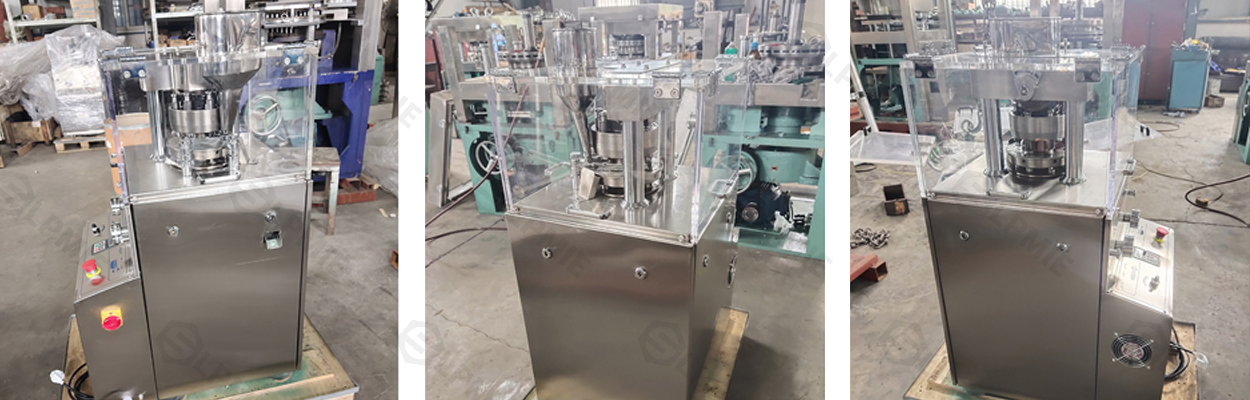

The Working Principle and Structure of Rotary Tablet Press
The rotary tablet press is an advanced machine used in pharmaceutical, food, and chemical industries for high-speed tablet production. It offers significant advantages over traditional tablet presses, such as double pressing, microcomputer control, and the ability to produce round and irregularly shaped tablets.
1. Working Principle
The rotary tablet press operates with a high-speed turntable that continuously compresses granular materials into tablets.
The key steps include:
Filling: Granules are loaded into the die cavity.
Pre-pressing: The material is initially compressed to remove excess air and improve compactness.
Main pressing: High pressure is applied to form the final tablet with the required hardness and density.
Ejection: The finished tablet is pushed out for collection.
Throughout this process, the control system ensures automatic weight adjustment, defect removal, statistical analysis, and error detection.
2. Main Structure
(1) Transmission System
The transmission system includes a motor, belt pulley, worm gear reducer, and speed adjustment handwheel. The motor speed is controlled by a frequency conversion governor, which drives the rotary table spindle. This allows the press to operate within an adjustable speed range.
(2) Turntable and Guideway Assembly

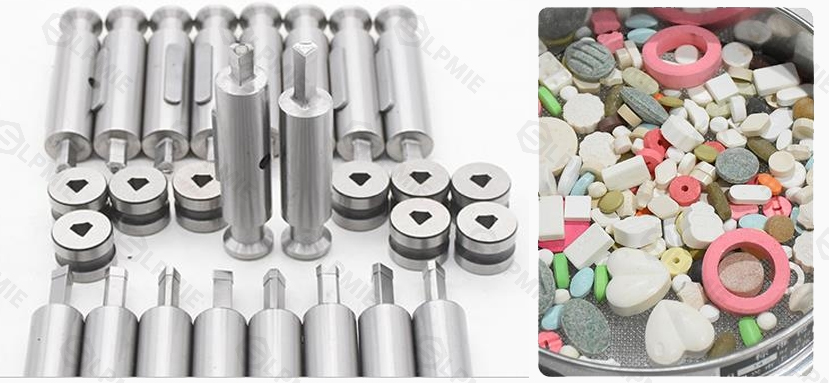

The turntable holds the punches, which move in a circular motion. The upper and lower guide rails direct their vertical movement, ensuring precise filling and compression of granules into tablets.
(3) Feeder Assembly
A forced feeder ensures accurate dosing of granules. A small DC motor powers a worm gear reducer that drives the feeding impellers, ensuring a steady and controlled flow of material into the die cavity. The feeding speed can be adjusted for different material properties.
(4) Filling System
To precisely control the amount of granules in each tablet, the filling system features adjustable depth settings. The stepper motor, controlled by pressure feedback, fine-tunes the filling depth, ensuring uniform tablet weight and consistency.
Why Choose Rotary Tablet Press?
✅ High-Speed Production: Capable of pressing thousands of tablets per hour.
✅ Double Pressing Mechanism: Ensures uniform density and hardness.
✅ Microcomputer Control: Allows real-time monitoring and automatic adjustments.
✅ Versatile Applications: Suitable for pharmaceuticals, food supplements, and chemical tablets.
✅ Fully Enclosed & Low Noise: Designed for cleanroom compliance and operator comfort.
Final Thoughts
The rotary tablet press is a revolutionary machine that enhances tablet production efficiency, accuracy, and quality. Whether you're in pharmaceutical, food, or chemical industries, this machine offers a robust solution for high-volume manufacturing.
